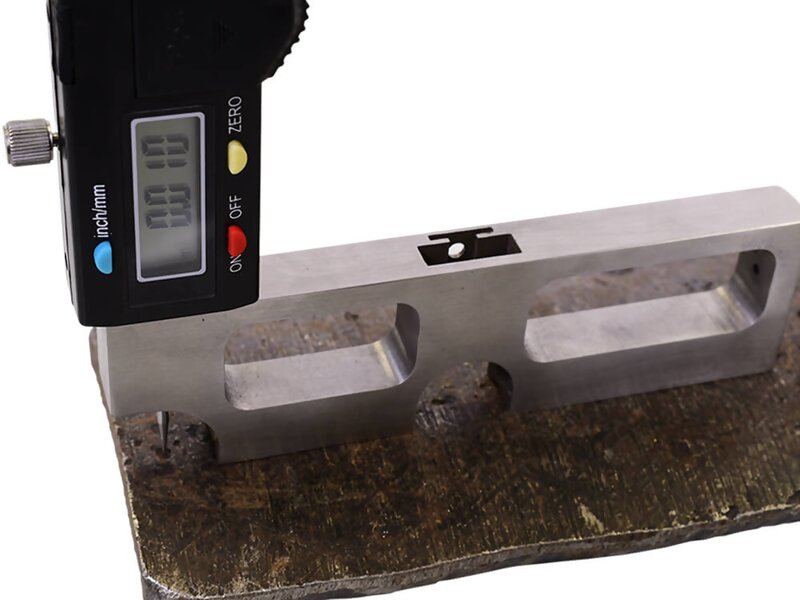

The NDT DPG-4/M Pit Gauge Kit with New Magnetic V-Groove Base is the new and improved spring loaded digital pit gauge featuring an exchangeable magnetic 4 7/8" V-groove base with center and cantilever positions in addition to two knife edge bases: the standard 2 3/8" long base and a 4 7/8" long base with two positions. With the magnetic V-groove base you can easily hold the gauge in any vertical, flat or overhead position, and the three bases ensure maximum versatility. Simple to use, the NDT DPG-4/M Pit Gauge Kit with New Magnetic V-Groove Base is water resistant and made of hardened stainless steel, producing accurate measurements of surface pits, gauges, dents, undercuts and more. Only 0.050" in diameter, the probe can access even the smallest pits.

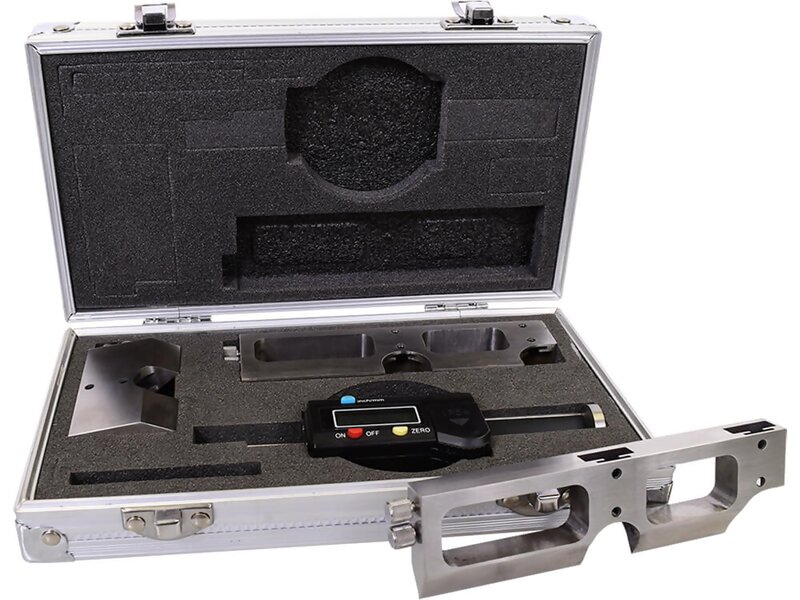

Kit Contents
- Spring Loaded Digital Pit Gauge
- Standard 2 3/8" Knife Edge Base
- Two Position 4 7/8" Knife Edge Base
- Two Position 4 7/8" Magnetic V-Groove Base
- Two Sets of Attachment Screws
- Hard Storage Case
|  |
Features
- Magnetic 4 7/8" V-Groove Base with center and cantilever positions that holds the gauge in any position - vertical, flat, or overhead

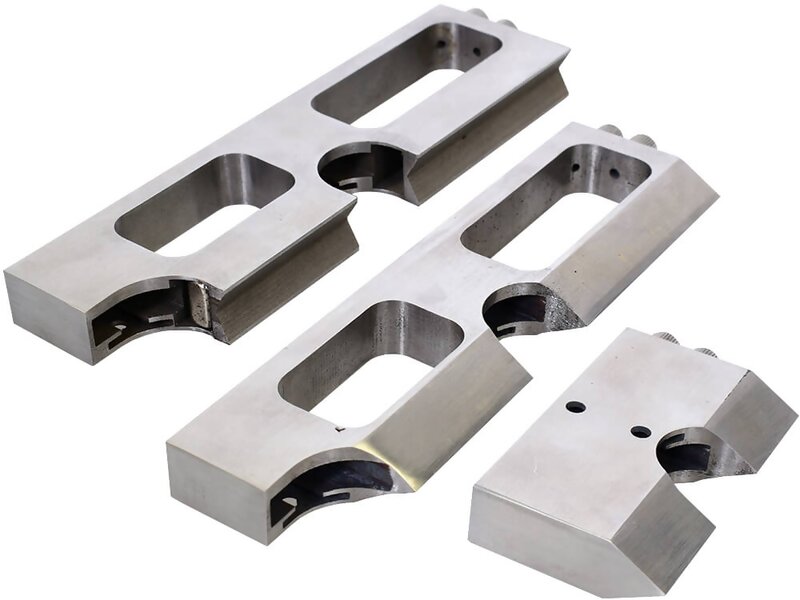

- 2 Exchangeable Knife Edge Bases: Standard 2 3/8" long base and a 4 7/8" long base with center and cantilever positions
- IP54 protection level for water spray, dust, etc.
- Accuracy of +/- 0.001"
- Can measure up to a 1.18" depth
- Made of hardened stainless steel
- Spring Loaded, 0.050" diameter probe
- Can zero at any position
- Button to switch between inches and mm
- 1 Year Limited Warranty
Specifications
| Range | 0 - 125" (0 - 30mm) |
| Resolution | 0.001" (0.025mm) |
| Accuracy | 0.001" (0.025mm) |
| Protection | IP-54 |
| Temperature Range | 32F - 105F (0C - 40C) |
| Relative Humidity | 80% |
| Storage Temperature | 14F - 140F (-10C - 60C) |
| Power | One (1) 1.55V Button Battery |
| Knife Base | 2 3/8" and 4 7/8" (60 and 125mm) |
| Magnetic | "V" Groove base 4 7/8" (125mm) |
